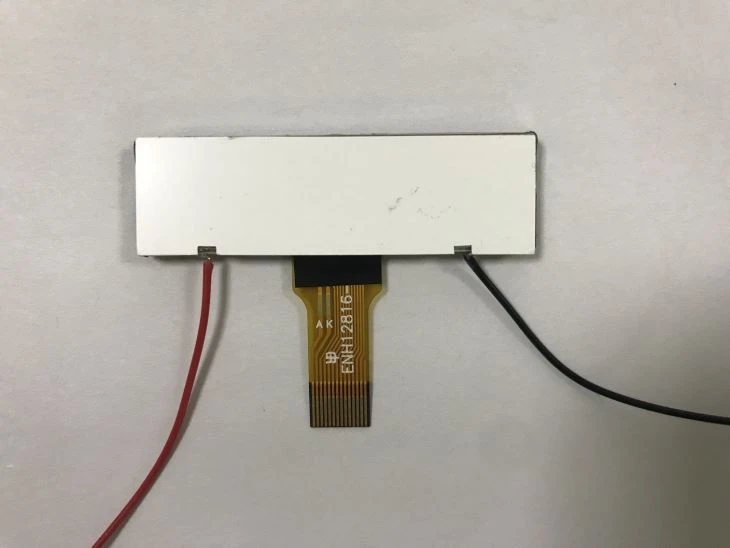

1.8 Inch 128*16 Dot Matrix LCD Screen Module IC ST7567 Lcd Display FSTN LCD

Resolution: 128*16
डिस्प्ले मोड: एफएसटीएन / ट्रांसफ्लेक्टिव / पॉजिटिव
Driving Method: 1/33 Duty 1/6 Bias
Viewing Angle: 6 O'clock

जांच भेजें

उत्पाद का परिचय

1.8 inch 128*16 dot matrix LCD Screen Module IC ST7567 lcd display FSTN LCD & nbsp;

1.Display & nbsp;मोड:	& nbsp;FSTN/Transflective/Positive
2.Number of dots:	& nbsp;128*16
3.Viewing angle:	& nbsp;6 O & #39;clock
4.Drive Method:	& nbsp;1/33 Duty & nbsp; 1/6 Bias
5.Backlight:	& nbsp;White LED
6.Connect:	& nbsp; सीओजी + एफपीसी
7.View area:	& nbsp;44.90*6.82mm
8.Active area:	& nbsp;43.50*5.42mm
9.Drive IC:	& nbsp;ST7567
